FireShield®
Fire protection - recess element EI 90
Ready-to-install, EI90 fire-resistant and waterproof complete solution for the partitioning of riser zones.
Thanks to its lightweight concrete structure, the FireShield® is stable and can be walked on, thus eliminating the need for complex and, above all, exceptionally cost-intensive barrier measures.
With the FireShield® you are choosing the safe, sustainable and ecological alternative.
150'000+
400+
800kg
10
FireShield® delivered
Projects supplied
Load capacity /m²
Partners
Description
Ready-to-install, EI90 fire-resistant and waterproof complete solution for sealing off riser zones. The FireShield® is prefabricated in the factory according to project-specific dimensions and delivered directly to the construction site according to an appointment agreed with the customer.
Thanks to its lightweight concrete structure, the FireShield® is stable and can be walked on, thus eliminating the need for complex and, above all, exceptionally cost-intensive barrier measures.
3 cups
Blueberries
3 cups
Flour
Lüftung & BSK EI90
Warmwasser: Mineralwolle
Kabel EI90
Kaltwasser: Armaflex
Thermoplast EI90
VKF fire protection applications
Nr. 26025 Nr. 26029
Nr. 26031 Nr. 26034
Nr. 26036 Nr. 26037
Nr. 26058 Nr. 26059
Fire resistance class:
-
EI 90
Test regulations:
-
EN1363-1, EN1366-3
Certified safety
The fire resistance of the FireShields® has been tested according to the latest European standards and has been VKF-certified.
With the installation of the FireShields®, you not only benefit from safe riser zones and a dry construction site, but also ensure professional sealing off of all common penetrations.
All FireShield® components were developed specifically for the system and thus represent an all-in-one complete solution.
Characteristics
+ Safe
-
Fire resistant EI90
-
Walkable - Safe installation
-
No risk of falling
-
Waterproof
+ Cost efficient
-
No formwork
-
No shelling
-
No fall protection
-
No barriers
-
Faster installation
-
Dry installation shafts
+ Fast & Simple
-
Prefabricated in our factory
-
Easy installation of pipes, cables
and vents
Walkable & fall-proof
+ Cast in concrete up to 800kg / m²
+ Tested with and without openings
+ Safe and fast installation
+ No grating required
+ No fall protection necessary
FireShield® EI 90
Fire protection - recess element EI90
Fire resistance EI90
-
Vents
-
Flammable pipes
-
Non-flammable pipes
-
Cables
Waterproof
-
No wet insulation
-
Quicker Installation
-
No pumping work
-
Dry from shell construction
cost efficient
-
Replaces Formwork
-
No separate fire protection
-
Fast pipe installation
-
No grating / barrier
Secure
-
No risk of falling
-
Tested resilience
-
No fall protection
-
No risk of tripping
Walkable
Tested load capacity
EI 90
Fire resistance
Dry
Waterproof
ECO
Minergie-Eco compatible
Order & Installation
Fast, cost-effective and uncomplicated
Bestellung und Einbau des FireShield®
Your FireShield® partner takes care of your project
From the drawing of the blueprints to the assembly and drilling to the equipment and acceptance - your FireShield® partner accompanies you throughout the entire project!
The installation of the FireShield® is particularly quick and uncomplicated, as each element is individually fabricated according to the blueprints. In addition to conventional rectangular recesses, more complex shapes can also be produced in all sizes.

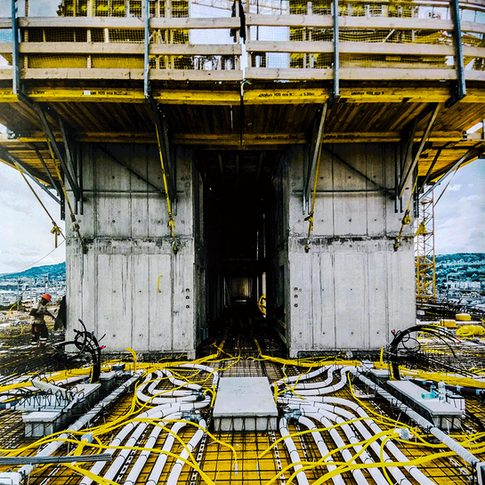

The FireShield® element is delivered with fastening brackets fixed to the side so that the element only has to be offset onto the formwork and nailed. The staggered elements serve as a reference point for the slab thickness during concreting.
For more information on installation, please refer to the technical data sheet.
